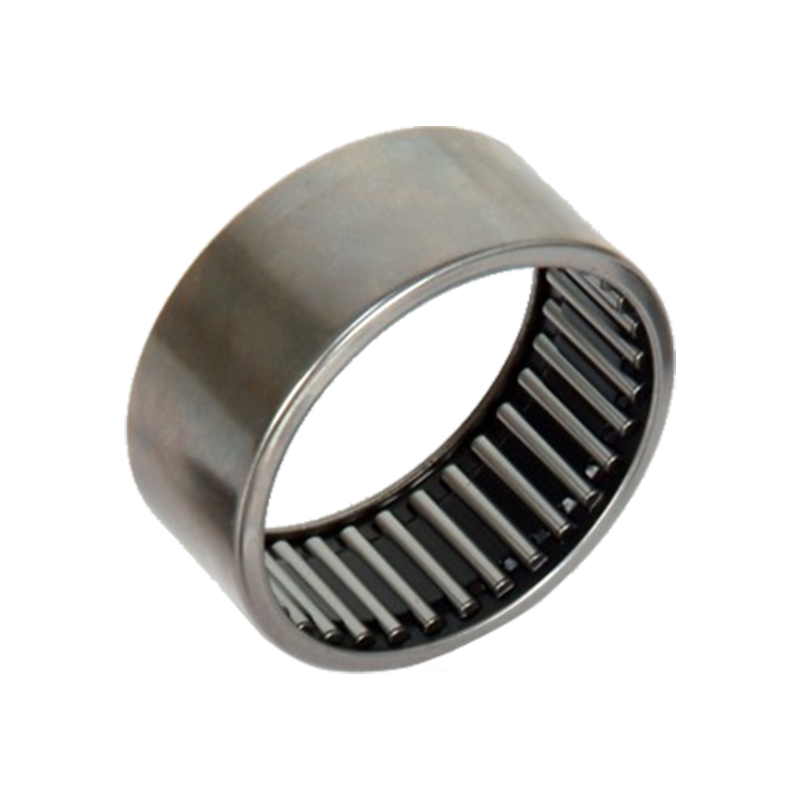

RNA-serie naaldwiellagers zijn een lagertype met een hoog belastingdragende capaciteit en ruimtegebruik, en worden veel gebruikt in mechanische apparatuur. Het ontwerp heeft het gebruik van naaldvormige rollende elementen, die een groter contactoppervlak hebben en een lagere wrijvingscoëfficiënt dan traditionele kogellagers. Hierdoor kunnen RNA -serie -lagers grotere belastingen weerstaan en tegelijkertijd de energieverliezen verminderen. De binnen- en buitenringen van deze reeks lagers kunnen worden gescheiden voor eenvoudige installatie en onderhoud, en zijn geschikt voor verschillende werkomgevingen, met name toepassingen in beperkte ruimtes. RNA -seriesagers worden veel gebruikt in auto's, industriële machines, elektronische apparatuur en andere velden.

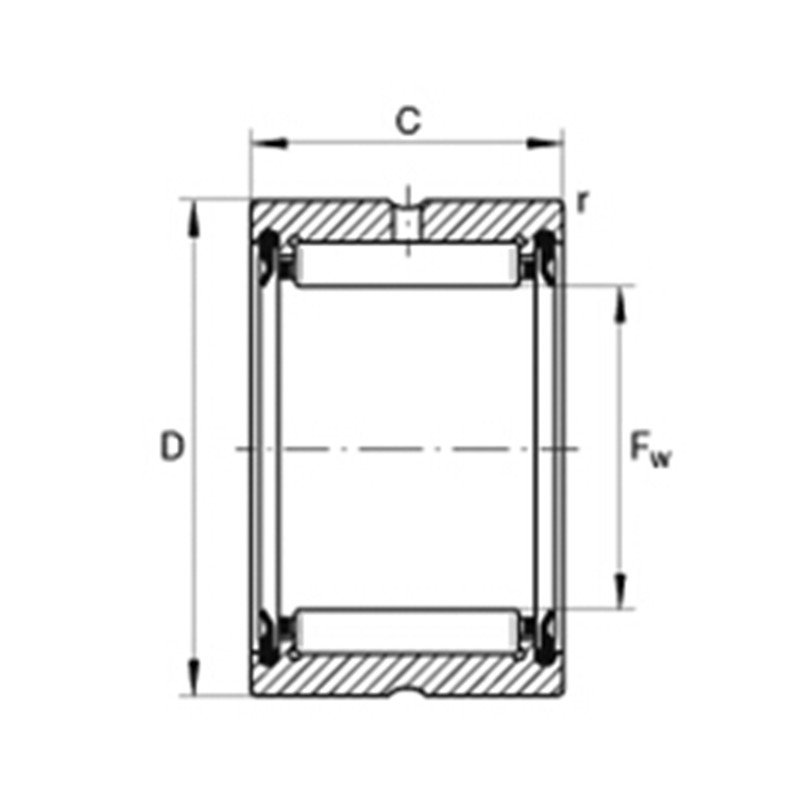

Productparameters
| LageraanDuiding | Asdiameter （mm） | Gewicht (kg) | Grensdimensies (mm) | Basisbelasting (N) | Beperkende snelheid (tpm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Zonder IR | Gewicht | Met IR | d | FW | D | C | B | Dynamisch | Statisch | Olie | ||
| RNA7.8169 | - | - | - | 7.8 | - | 7.8 | 16 | - | 9 | - | - | - |
| RNA8X19X9 | - | - | - | 7.8 | - | 8 | 19 | - | 9 | - | - | - |
| RNA8X14X8 | - | - | - | 7.8 | - | 8 | 14 | - | 8 | - | - | - |
| RNA496 | - | - | - | 7.8 | - | 8 | 15 | - | 10 | - | - | - |
| RNA8X15X10TN | - | - | - | 7.8 | - | 8 | 15 | - | 10 | - | - | - |
| RNA4900 | 24.4 | - | - | 7.8 | - | 14 | 22 | - | 13 | 8500 | 9000 | 25000 |
| RNA6900 | 29.1 | - | - | 7.8 | - | 14 | 22 | - | 22 | 12800 | 15600 | 25000 |
| RNA152815 | 31.7 | - | - | 7.8 | - | 15 | 28 | - | 15 | 13600 | 17200 | 24000 |
| RNA4901 | 16.6 | - | - | 7.8 | - | 16 | 24 | - | 13 | 6400 | 8900 | 15500 |
| RNA6901 | 28.7 | - | - | 7.8 | - | 16 | 24 | - | 22 | 14000 | 18600 | 15500 |
| RNA4902 | 20.5 | - | - | 7.8 | - | 20 | 28 | - | 13 | 11000 | 12900 | 12000 |
| RNA6902 | 35.4 | - | - | 7.8 | - | 20 | 28 | - | 23 | 10800 | 12800 | 12000 |
| RNA5902 | - | - | 7.8 | - | 20 | 28 | - | 18 | ||||
| RNA4903 | 20.7 | - | - | 7.8 | - | 22 | 30 | - | 13 | 12000 | 16800 | 16300 |
| RNA5903 | - | - | 7.8 | - | 22 | 30 | - | 18 | ||||
| RNA6903 | 39.8 | - | - | 7.8 | - | 22 | 30 | - | 23 | 14000 | 19900 | 16300 |
| RNA4904 | 50.8 | - | - | 7.8 | - | 25 | 37 | - | 17 | 11900 | 16500 | 15000 |
| RNA6904 | 97.7 | - | - | 7.8 | - | 25 | 37 | - | 30 | 26000 | 43000 | 15000 |
| RNA22/6 2RS | 18 | Na22/6 2rs | 22 | 19 | 6 | 10 | 19 | 12 | 11.8 | 5000 | 4350 | 18000 |
| RNA22/6 2RSX | 18 | NA22/6 2RSX | 22 | 19 | 6 | 10 | 19 | 12 | 11.8 | 5000 | 4350 | 18000 |
| RNA22/8 2RS | 29 | Na22/8 2rs | 34 | 24 | 8 | 12 | 24 | 12 | 11.8 | 5500 | 5200 | 14000 |
| RNA22/8 2RSX | 29 | NA22/6 2RSX | 34 | 24 | 8 | 12 | 24 | 12 | 11.8 | 5500 | 5200 | 14000 |
| RNA283833 | 99.8 | - | - | 28 | - | 28 | 38 | - | 33 | 33000 | 57000 | 12000 |
| RNA69/22 | - | - | 28 | - | 28 | 39 | - | 30 | ||||
| RNA4905 | 57 | - | - | 28 | - | 30 | 42 | - | 17 | 23600 | 31500 | 14000 |
| RNA6905 | 106.5 | - | - | 28 | - | 30 | 42 | - | 30 | 39000 | 59000 | 14000 |
| RNA305225 | - | - | - | 28 | - | 30 | 52 | - | 25 | |||
| RNA49/28 | 80 | - | - | 28 | - | 32 | 45 | - | 17 | 17400 | 30000 | 13000 |
| RNA69/28 | 125 | - | - | 28 | - | 32 | 45 | - | 30 | 39500 | 61300 | 13000 |
| RNA324527 | - | - | - | 28 | - | 32 | 45 | - | 27 | |||
| RNA4906 | 62.8 | - | - | 28 | - | 35 | 47 | - | 17 | 17000 | 30500 | 12000 |
| RNA6906 | 116 | - | - | 28 | - | 35 | 47 | - | 30 | 35000 | 67000 | 12000 |
| RNA354527 | - | - | - | 28 | - | 35 | 45 | - | 27 | - | - | - |
| RNA5906 | 108 | - | - | 28 | - | 35 | 47 | - | 23 | - | - | - |
| RNA355730 | - | - | - | 28 | - | 35 | 57 | - | 30 | - | - | - |
| RNA355734 | - | - | - | 28 | - | 35 | 57 | - | 34 | - | - | - |
| RNA49/32 | - | - | - | 28 | - | 40 | 52 | - | 20 | - | - | - |
| RNA69/32 | 147 | - | - | 28 | - | 40 | 52 | - | 36 | 25500 | 68500 | 8500 |
| RNA405422 | - | - | - | 28 | - | 40 | 54 | - | 22 | - | - | - |
| RNA40X55X20 | - | - | - | 28 | - | 40 | 55 | - | 20 | - | - | - |
| RNA4907 | 99.3 | - | - | 28 | - | 42 | 55 | - | 20 | 19800 | 41500 | 8700 |
| RNA5907 | - | - | - | 28 | - | 42 | 55 | - | 27 | |||
| RNA6907 | 160 | - | - | 28 | - | 42 | 55 | - | 36 | 26000 | 60500 | 8700 |
| RNA425622 | - | - | - | 28 | - | 42 | 56 | - | 22 | - | - | - |
| RNA456227K | - | - | - | 28 | - | 45 | 62 | - | 27 | - | - | - |
| RNA2200 2RS | 52 | NA2200 2RS | 60 | 30 | 10 | 14 | 30 | 14 | 13.8 | 7600 | 8100 | 11000 |
| RNA2200 2RSX | 52 | NA2200 2RSX | 60 | 30 | 10 | 14 | 30 | 14 | 13.8 | 7600 | 8100 | 11000 |
| RNA2201 2rs | 57 | NA2201 2rs | 67 | 32 | 12 | 16 | 32 | 14 | 13.8 | 8500 | 9700 | 9500 |
| RNA2201 2RSX | 57 | NA2201 2RSX | 67 | 32 | 12 | 16 | 32 | 14 | 13.8 | 8500 | 9700 | 9500 |
| RNA2202 2rs | 60 | NA2202 2rs | 75 | 35 | 15 | 20 | 35 | 14 | 13.8 | 9600 | 12000 | 7000 |
| RNA2202 2RSX | 60 | NA2202 2RSX | 75 | 35 | 15 | 20 | 35 | 14 | 13.8 | 9600 | 12000 | 7000 |
| RNA2203 2rs | 94 | NA2203 2rs | 112 | 40 | 17 | 22 | 40 | 16 | 15.8 | 12000 | 16500 | 6000 |
| RNA2203 2RSX | 94 | NA2203 2RSX | 112 | 40 | 17 | 22 | 40 | 16 | 15.8 | 12000 | 16500 | 6000 |
| RNA2204 2rs | 152 | NA2204 2rs | 177 | 47 | 20 | 25 | 47 | 18 | 17.8 | 18500 | 21900 | 4600 |
| RNA2204 2RSX | 152 | NA2204 2RSX | 177 | 47 | 20 | 25 | 47 | 18 | 17.8 | 18500 | 21900 | 4600 |
| RNA4908 | 132 | - | - | 48 | - | 48 | 62 | - | 22 | 31000 | 63000 | 8120 |
| RNA5908 | 225 | - | - | 48 | - | 48 | 62 | - | 30 | 31000 | 63000 | 8120 |
| RNA6908 | 238 | - | - | 48 | - | 48 | 62 | - | 40 | 64000 | 112000 | 8120 |
| RNA50/25 | 167 | - | - | 50 | - | 50 | 62 | - | 25 | 28000 | 67000 | 8140 |
| RNA50/35 | 236 | - | - | 50 | - | 50 | 62 | - | 35 | 32000 | 70100 | 8140 |
| RNA2205 2rs | 179 | NA2205 2rs | 209 | 52 | 25 | 30 | 52 | 18 | 17.8 | 20100 | 26000 | 3500 |
| RNA2205 2RSX | 179 | NA2205 2RSX | 209 | 52 | 25 | 30 | 52 | 18 | 17.8 | 20100 | 26000 | 3500 |
| RNA4909 | 163 | - | - | 52 | - | 52 | 68 | - | 22 | 37000 | 69500 | 7600 |
| RNA5909 | 232 | - | - | 52 | - | 52 | 68 | - | 30 | - | - | - |
| RNA6909 | 308 | - | - | 52 | - | 52 | 68 | - | 40 | 61500 | 123500 | 7600 |
| RNA4910 | 161 | - | - | 58 | - | 58 | 72 | - | 22 | 41000 | 72000 | 7500 |
| RNA6910 | 296 | - | - | 58 | - | 58 | 72 | - | 40 | 68000 | 135000 | 7500 |
| RNA2206 2rs | 284 | NA2206 2rs | 324 | 62 | 30 | 35 | 62 | 20 | 19.8 | 23000 | 28000 | 2800 |
| RNA2206 2RSX | 284 | NA2206 2RSX | 324 | 62 | 30 | 35 | 62 | 20 | 19.8 | 23000 | 28000 | 2800 |
| RNA4911 | 241 | - | - | 63 | - | 63 | 80 | - | 25 | 50600 | 96580 | 7000 |
| RNA6911 | 430 | - | - | 63 | - | 63 | 80 | - | 45 | 82560 | 172000 | 7000 |
| RNA4912 | 257 | - | - | 68 | - | 68 | 85 | - | 25 | 52800 | 91050 | 7000 |
| RNA5912 | 408 | - | - | 68 | - | 68 | 85 | - | 34 | - | - | - |
| RNA6912 | 436 | - | - | 68 | - | 68 | 85 | - | 45 | 88500 | 186000 | 7000 |
| RNA2207 2rs | 432 | NA2207 2rs | 505 | 72 | 35 | 42 | 72 | 23 | 22.7 | 29800 | 46300 | 2200 |
| RNA2207 2RSX | 432 | NA2207 2RSX | 505 | 72 | 35 | 42 | 72 | 23 | 22.7 | 29800 | 46300 | 2200 |
| RNA4913 | 300 | - | - | 72 | - | 72 | 90 | - | 25 | 57500 | 110500 | 6500 |
| RNA6913 | 571 | - | - | 72 | - | 72 | 90 | - | 45 | 87600 | 194500 | 6500 |
| RNA2208 2rs | 530 | NA2208 2rs | 628 | 80 | 40 | 48 | 80 | 23 | 22.7 | 38200 | 57700 | 1700 |
| RNA2208 2RSX | 530 | NA2208 2RSX | 628 | 80 | 40 | 48 | 80 | 23 | 22.7 | 38200 | 57700 | 1700 |
| RNA4914 | 400 | - | - | 80 | - | 80 | 100 | - | 30 | 79000 | 154000 | 5500 |
| RNA6914 | 815 | - | - | 80 | - | 80 | 100 | - | 54 | 121000 | 263000 | 5500 |
| RNA2209 2rs | 545 | NA2209 2rs | 655 | 85 | 45 | 52 | 85 | 23 | 22.7 | 40300 | 63800 | 1600 |
| RNA2209 2RSX | 545 | NA2209 2RSX | 655 | 85 | 45 | 52 | 85 | 23 | 22.7 | 40300 | 63800 | 1600 |
| RNA4915 | 472 | - | - | 85 | - | 85 | 105 | - | 30 | 82000 | 158000 | 5500 |
| RNA5915 | 745 | - | - | 85 | - | 85 | 105 | - | 40 | - | - | - |
| RNA6915 | 923 | - | - | 85 | - | 85 | 105 | - | 54 | 128000 | 272000 | 5500 |
| RNA22010 2rs | 563 | NA22010 2rs | 690 | 90 | 50 | 58 | 90 | 23 | 22.7 | 66000 | 86000 | 1300 |
| RNA22010 2RSX | 563 | NA22010 2RSX | 690 | 90 | 50 | 58 | 90 | 23 | 22.7 | 66000 | 86000 | 1300 |
| RNA6X13X8TN | - | - | - | 90 | - | 6 | 13 | - | 8 | - | - | - |
| RNA4916 | 496 | - | - | 90 | - | 90 | 110 | - | 30 | 81000 | 170500 | 5000 |
| RNA6916 | 978 | - | - | 90 | - | 90 | 110 | - | 54 | 130500 | 280600 | 5000 |
| RNA4917 | 608 | - | - | 100 | - | 100 | 120 | - | 35 | 98000 | 207000 | 4600 |
| RNA6917 | 1112 | - | - | 100 | - | 100 | 120 | - | 63 | 161000 | 337000 | 4600 |
| RNA4918 | 713 | - | - | 105 | - | 105 | 125 | - | 35 | 98500 | 239000 | 4000 |
| RNA6918 | 1250 | - | - | 105 | - | 105 | 125 | - | 63 | 174000 | 38000 | 4000 |
| RNA4919 | 685 | - | - | 110 | - | 110 | 130 | - | 35 | 112000 | 245000 | 3870 |
| RNA6919 | 1325 | - | - | 110 | - | 110 | 130 | - | 63 | 196000 | 400000 | 3870 |
| RNA4920 | 1006 | - | - | 115 | - | 115 | 140 | - | 40 | 120000 | 264000 | 3700 |
| RNA4922 | 1200 | - | - | 125 | - | 125 | 150 | - | 40 | 124000 | 270000 | 3300 |
| RNA4924 | 1760 | - | - | 135 | - | 135 | 165 | - | 45 | 174000 | 386000 | 2900 |
| RNA4928 | 2350 | - | - | 160 | - | 160 | 190 | - | 50 | 200000 | 460000 | 2900 |
